The ‘Baldwin Organ’ Winston E. Kock & J.F. Jordan, USA, 1946

Early Model of Winston Kock's Baldwin organ

Winston Kock’s Baldwin Organ Model Five 1947

The Baldwin organ was an electronic organ, many models of which have been manufactured by the Baldwin Piano & Organ Co. since 1946. The original models were designed by Dr Winston E. Kock who became the company’s director of electronic research after his return from his studies at the Heinrich-Hertz-Institute, Berlin, in 1936. The organ was a development of Kock’s Berlin research with the GrosstonOrgel using the same neon-gas discharge tubes to create a stable, affordable polyphonic instrument. The Baldwin Organ were based on an early type of subtractive synthesis; the neon discharge tubes generating a rough sawtooth wave rich in harmonics which was then modified by formant filters to the desired tone.

Tone modifying circuits of the Baldwin organ

Tone modifying circuits of the Baldwin organ

Another innovative aspect of the Baldwin Organ was the touch sensitive keyboard designed to create a realistic variable note attack similar to a pipe organ. As the key was depressed, a curved metal strip progressively shorted out a carbon resistance element to provide a gradual rather than sudden attack (and decay) to the sound.  This feature was unique at that time, and it endowed the Baldwin instrument with an unusually elegant sound which captivated many musicians of the day.

“How did it sound? I have played Baldwin organs at a time when they were still marketed and in my opinion, for what it is worth, they were pretty good in relative terms.  That is to say, they sounded significantly better on the whole than the general run of analogue organs by other manufacturers, and they were only beaten by a few custom built instruments in which cost was not a factor.  It would not be true to say they sounded as good as a good digital organ today, but they compared favourably with the early Allen digitals in the 1970’s.  Nor, of course, did they sound indistinguishable from a pipe organ, but that is true for all pipeless organs.  To my ears they also sounded much better and more natural than the cloying tone of the more expensive Compton Electrone which, like the Hammond, also relied on attempts at additive synthesis with insufficient numbers of harmonics.”

From ‘Winston Kock and the Baldwin Organ; by Colin Pykett

Electronic Generator of the earlt model Baldwin Organ

Electronic Tone Generator of the early model Baldwin Organ showing neon gas-discharge tube oscillators.

Kock’s 1938 Patent of the Baldwin organ

Winston Kock playing an early experimental design for an electric instrument

Winston Kock playing his early experimental electronic instrument 1932

Winston E. Kock Biographical Details:

Winston Kock was born into a German-American family in 1909 in Cincinnati, Ohio. Despite being a gifted musician he decided to study electrical engineering at Cincinnati university and in his 20’s designed a highly innovative, fully electronic organ for his master’s degree.

The major problem of instrument design during the 1920’s and 30’s was the stability and cost of analogue oscillators. Most commercial organ ventures had failed for this reason; a good example being  Givelet & Coupleux’s  huge valve Organ in 1930. it was this reason that Laurens Hammond (and many others) decided on Tone-Wheel technology for his Hammond Organs despite the inferior audio fidelity.

Kock had decided early on to investigate the possibility of producing a commercially viable instrument that was able to produce the complexity of tone possible from vacuum tubes. With this in mind, Kock hit upon the idea of using much cheaper neon ‘gas discharge’ tubes as oscillators stabilised with resonant circuits. This allowed him to design an affordable, stable and versatile organ.

Kock's Sonar device during WW2

Kock’s Sonar device during WW2

In the 1930’s Kock, fluent in German, went to Berlin to study On an exchange fellowship (curiously, the exchange was with Sigismund von Braun, Wernher von Braun’s eldest brother –Kock was to collaborate with Wernher twenty five years later at NASA) at the Heinrich Hertz Institute conducting research for a doctorate under Professor K W Wagner. At the time Berlin, and specifically the Heinrich Hertz Institute, was the global centre of electronic music research. Fellow students and professors included; Jörg Mager, Oskar Vierling, Fritz Sennheiser, Bruno Helberger, Harald Bode, Friedrich Trautwein, Oskar Sala and Wolja Saraga amongst others. Kock’s study was based around two areas: – improving the understanding of glow discharge (neon) oscillators, and developing realistic organ tones using specially designed filter circuits.

Kock worked closely with Oskar Vierling for his Phd and co-designed the GrosstonOrgel in 1934 but disillusioned by the appropriation of his work by the newly ascendant Nazi party he decided to leave for India, sponsored by the Baldwin Organ Company arriving at the Indian Institute of Music in Bangalore in 1935.

Returning from India in 1936, Dr Kock became Baldwin’s Director of Research while still in his mid-twenties, and with J F Jordan designed many aspects of their first electronic organ system which was patented in 1941.

NASA

Winston E Kock (L) as the first Director of Engineering Research at NASA

When the USA entered the second world war Kock moved to Bell Telephone Laboratories where he was involved on radar research and specifically microwave antennas. In the mid-1950’s he took a senior position in the Bendix Corporation which was active in underwater defence technology. He moved again to become NASA’s first Director of Engineering Research, returning to Bendix in 1966 where he remained until 1971 when he became Acting Director of the Hermann Schneider Laboratory of the University of Cincinatti. Kock Died in Cincinatti in 1982.

 Winston Kock was a prolific writer of scientific books but he also wrote fiction novels under the pen name of Wayne Kirk.

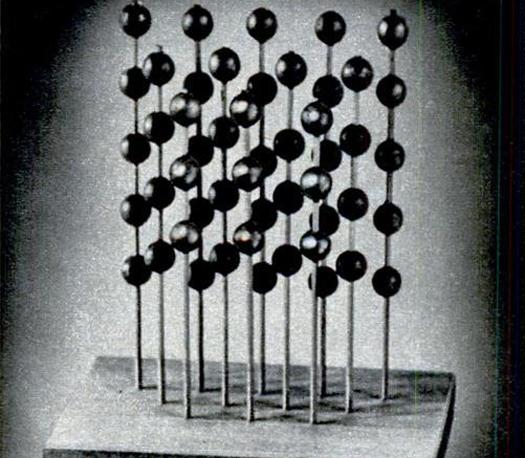

Acoustic lenses developed by Winston Kock at the Bell Labs in the 1950's

Acoustic lenses developed by Winston Kock at the Bell Labs in the 1950’s

Acoustic lenses developed by Winston Kock at the Bell Labs in the 1950's

Acoustic lenses developed by Winston Kock at the Bell Labs in the 1950’s

lenses

Acoustic lenses developed by Winston Kock at the Bell Labs in the 1950’s


Sources:

Hugh Davies. The New Grove Dictionary of Music and Musicians

http://www.pykett.org.uk/drkock.htm

One thought on “The ‘Baldwin Organ’ Winston E. Kock & J.F. Jordan, USA, 1946

  1. Thank you for acknowledging my website as one of your sources. However, note that the Baldwin Model 5 organ discussed above used double-triode thermionic tubes (6SN7’s), not neon gas discharge tubes. It is true that Kock first developed a stable tone generator using neon tubes in the 1930s, but after world war 2 the performance of thermionic tubes had increased dramatically and their cost had likewise reduced.
