Qasar I,II & M8.Tony Furse. Australia, 1972



Tony Furse QASAR
Tony Furse and the QASAR M8

Since the 1960s, Australian electronics engineer Tony Furse had been trying to develop an electronic musical instrument that was capable of digitally synthesising complex waveforms such as percussion and orchestral instruments. Furse’s early transistor prototypes using small flip-flop circuits only became practically viable with the advent of  of integrated circuits in the late 1960s – this basic ‘proto digital waveform generator’ (1966 to 1969) enabled him to control waveform harmonics but failed to deliver the tonal complexities of ‘real’ instruments.

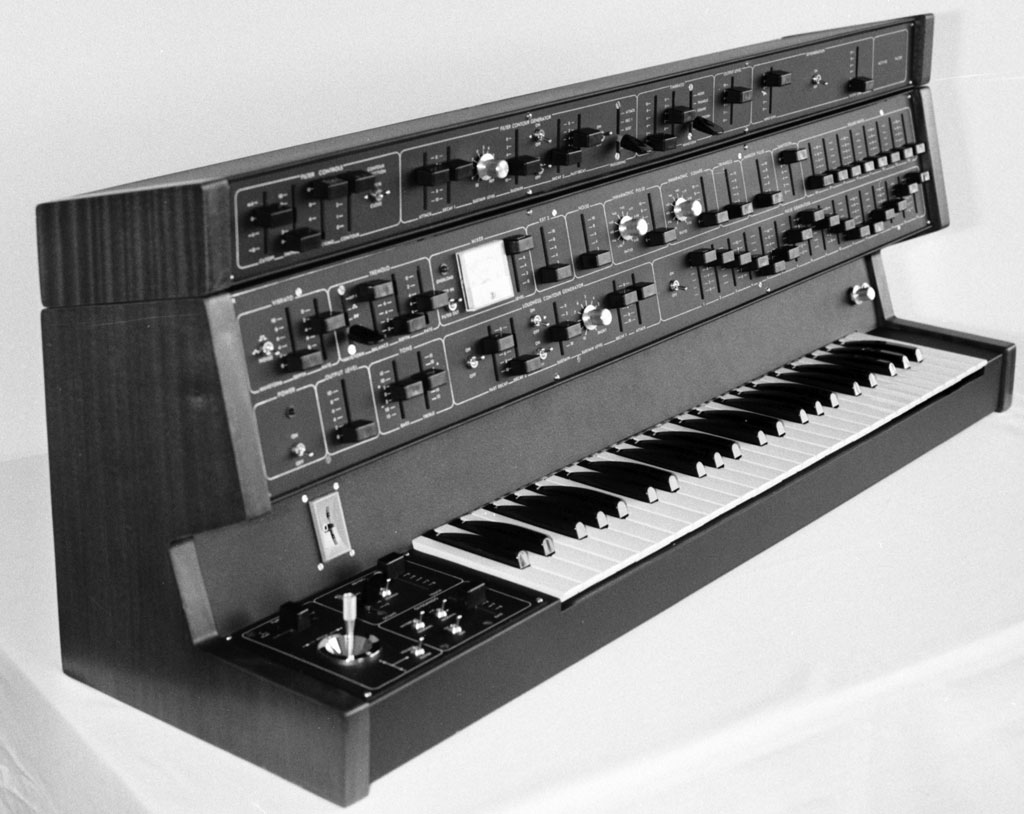

Qasar I Digital/Analogue Hybrid Synthesiser
Qasar I Digital/Analogue Hybrid Synthesiser

In 1972 Furse set up his own company ‘Creative Strategies’ in Sydney, Australia to continue the development of his instrument. The first product of Creative Strategies was named the Qasar I a monophonic digital/analog hybrid synthesiser. Despite only two prototypes being built, the instrument attracted the attention of electronic music composer Don Banks (then Head of Composition and Electronic Music Studies at the Canberra School of Music) who had worked at the EMS studio in London. Don persuaded Canberra School of Music and the Federal government to fund the development of the Qasar and also contributed his knowledge and experience of using EMS electronic instruments – such as the VCS3 – to the project. The result of this collaboration was the Qasar II, a duo-phonic digital instrument based on dual 8-bit Motorola 6800 microprocessors in an unusual parallel configuration. The Qasar II was capable of digitally synthesising waveforms but couldn’t output harmonic partials so the sounds that it produced were fairly static. The expensive microprocessor based Qasar II failed to go into production being unable to compete with the much cheaper transistor based Moog Modular, released around the same time.

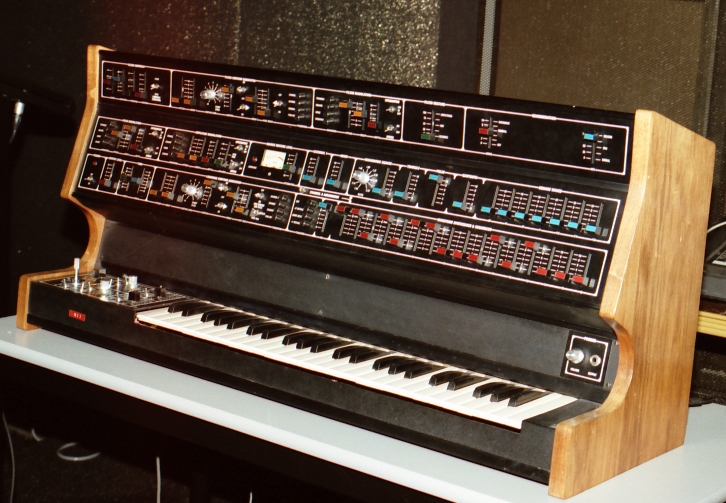

Qasar II
Qasar II

Furse and Creative Strategies next project was the Qasar M8 or “Multimode 8”.  Completed in 1975, the M8 was a $15,000, 8Bit, 4k memory, 8 voice polyphonic Digital Synthesiser based around the same dual 6800 1mhz Motorola processor and wire-wrapped board combination as the Qasar II. Uniquely the M8 allowed the synthesis of sounds using additive Fast Fourier Synthesis (FFT) drawn and edited with a light pen on a black and white VDU. The instrument was housed in a large box and played manually via a four octave keyboard or digitally using Furse’s innovative MUSEQ 8 ‘sequence playing system’ . Sound programmes could be saved to an 8″ floppy drive.

Later Models included the 8-voice MC6800 and Qasar Polyphone (1975).

In 1976 fellow Australian electronic instrument designers, Kim Ryrie and Peter Vogel, approached Furse with an offer to license the M8 to their Fairlight company. This became Fairlight’s first production instrument the Qasar M8 CMI and the direct ancestor of the famous Fairlight CMI. The M8 CMI was an even more expensive $20,000 redesigned version of the dual CPU 6800 processor but with printed circuit boards, a new QDOS OS ( based on Motorola DOS), 8 voice polyphony all controlled by a more dynamic six octave keyboard and the same light pen control as the earlier M8.

The large and expensive Qasar M8 CMI was eventually discontinued in 1979, many of the features of the M8 being incorporated into the Fairlight CMI digital synthesiser/sampler.

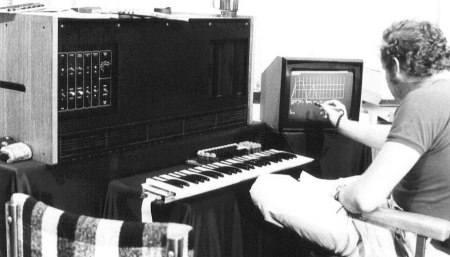

Qasar M8 CMI
Qasar M8 CMI

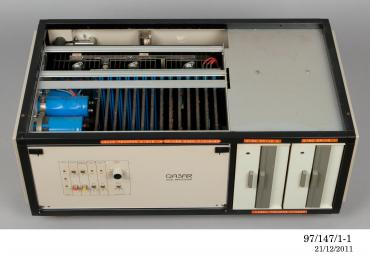

m8 (1) 360188

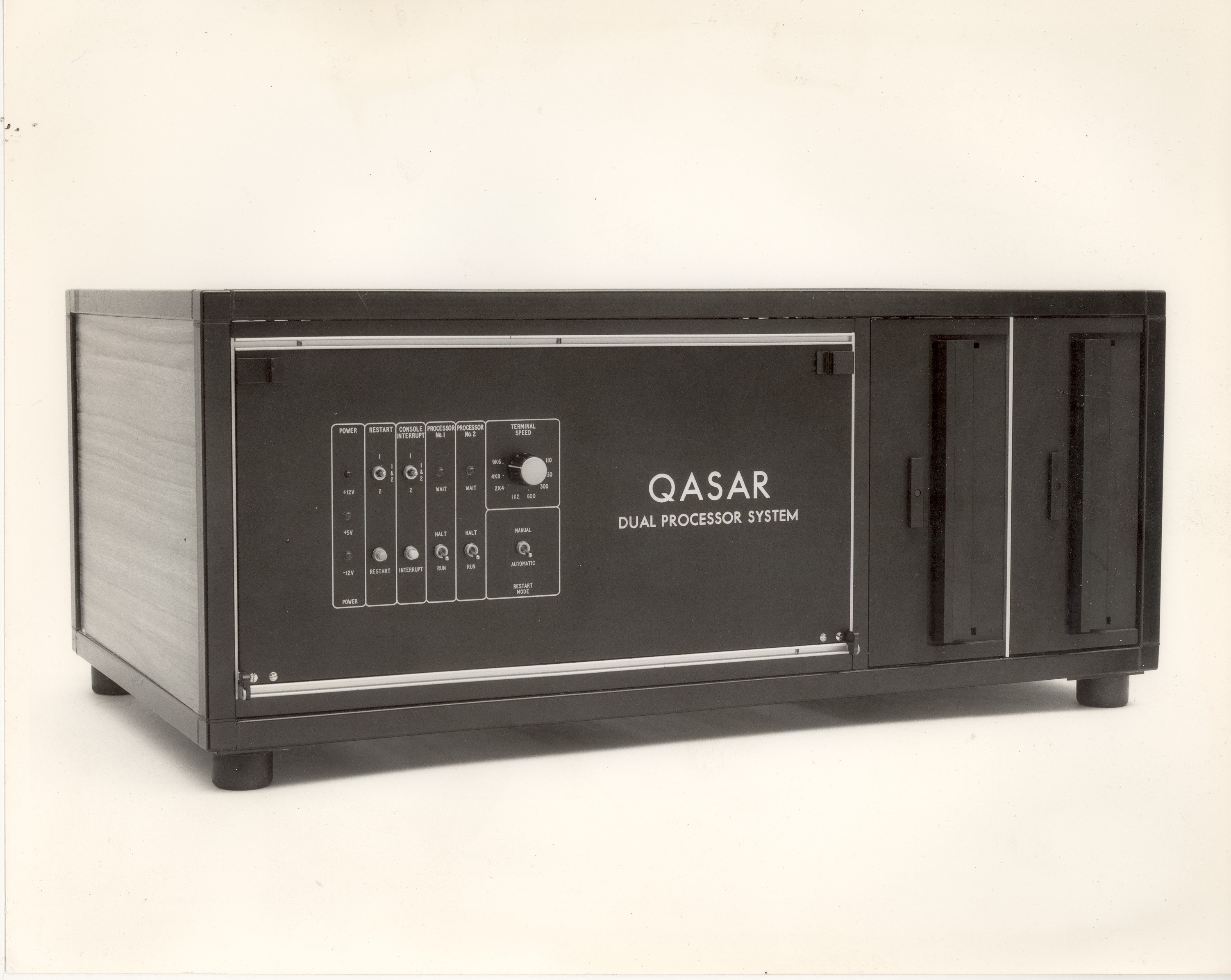

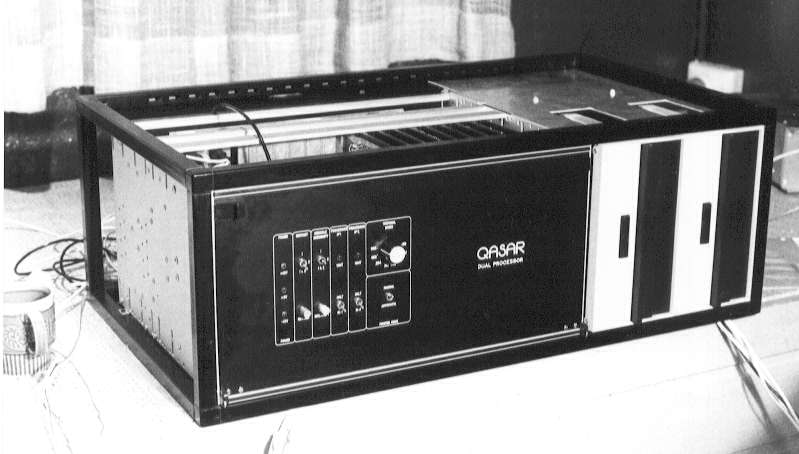

The QasarM8
The QasarM8

Sounds:

Qasar M8 piece (multitracked) by Michael Carlos August 1978.mp3

Another Qasar M8 piece by Michael Carlos August 1978

http://www.anerd.com/fairlight/audioarchives/fa051.mp3

Tony Furse and the Qasar II
Tony Furse and the Qasar II

Tony Furse. Biographical notes

Born in Sydney in 1938 Tony Furse was passionate about electronics from an early age. His interest in all things technologicalled to him using the electronics and communications equipment available from army disposal stores in the post World War IIperiod to create his own inventions which ranged from crystal sets to high voltage generators.In the late 1950s, Furse’s interest in creating electronic music had resulted in his earliest invention, an electronic clarinet.This clarinet, which could be played with one hand, was made by converting a secondhand clarinet into a working electronicinstrument powered by a car battery. Played using a keyboard-like attachment, electric solenoids were used to cover and uncover the holes.

Curious about the nature of harmonics, Furse began looking at the different sounds produced by electronic organs (which used signals produced by radio valves). He wondered why, among the range of sounds available, there was no option to produce percussive or string sounds. His subsequent research included reading an English translation of the work by German physician and physicist Hermann Helmholtz, ‘On the Sensations of Tone as a Physiological Basis for the Theory of Music’ ,which talked of the two extremes of sound, from noise at one end to musical tones at the other. Also inspiring for Furse at the time were the American accoustical engineering pioneer Harry F. Olson’s ‘Elements of Acoustical Engineering’ (1957) andAmerican musicologist, Charles A. Culver’s book, ‘Musical Acoustics’ (1956).

While Furse spent the 1960s and the early ’70s working as an electronics engineer in the computer industry, in his spare time he was still applying his technical skills to the creation of electronic music. A major breakthrough came for Furse when in 1964 he read an article written by James, Potok and Oxley titled ‘Repetitive Function Synthesizer and Spectrum Display’. The article, which mentioned ‘digital sampling’ and a device that made this possible, enabled Furse to develop the first ‘all digital waveform synthesiser’.His attempts in the early 1960s to build the equivalent of today’s microcomputers had involved using too many transistors to make it a viable concern – it was only in the mid 1960s, when the appearance of integrated circuits, (capable of holding increasingly large numbers of transistors within a chip) made his research more affordable, that Furse’s research took off. But although the ‘proto digital waveform generator’ that Furse had invented and used from 1966 to 1969 allowed him control over harmonics, the sound produced still fell short of his idea of a realistic reproduction of actual instruments.

Leaving his job in early 1972 to concentrate on further developing his inventions, Furse set up his own company, Creative Strategies Pty Ltd, which he operated from his home in Sydney’s Neutral Bay. His first invention was an ‘analogue/digital hybrid synthesiser’ which he named Qasar 1. As well as breaking new ground in its design, another attractive feature of the synthesiser was its affordability. To market this invention, Furse enlisted the help of David Bross, a computer salesman and talented keyboard player, who, after quickly mastering the Qasar 1 synthesiser, joined Creative Strategies as a company director. Another person instrumental in providing support for Furse at this time was Don Banks, the noted composer of jazz, classical music and electronic music who, following a number of years studying and working in England, had returned to Australia in1972. The following year he was appointed head of composition studies at the Canberra School of Music, setting up the School’s electronic music studio. He took an interest in Tony Furse’s next invention, a ‘digital/analogue hybrid sound synthesiser’ named the Qasar II, operated by a keyboard control panel, which had been developed with the assistance of a grant from the Australian Council for the Arts -Banks purchased the Qasar II for the School of Music.

Furse’s next project was an all-digital synthesiser, which he named the Qasar M8 (Multimode 8) synthesiser. In addition to a keyboard, Furse had developed a graphics display which, with the use of a light pen, allowed the operator to create an instrument or voice using waveforms. After having made a deal with the large American electronics company, Motorola to use their programme development system, Furse was able to develop the MUSEQ 8 sequence playing system. The idea was that the MUSEQ 8 system, when used in conjunction with his M8, could be used by composers of all kinds of music, not just electronic, for the composition and the performance of music. Another major innovation with the M8 synthesiser was Furse’s use of two 8-bit Motorola 6800 microprocessors in an unusual parallel configuration which greatly speeded up data input and output.

In late 1974, following the success of Furse’s lecture and demonstration of the Qasar M8 in Canberra before an audience from the Canberra School of Music, the Australian National University and the College of Advanced Education, Don Banks, who realised the potential of Furse’s invention for the School of Music, requested a similar model be made for the School’s electronic music studio. Furse continued to work on the prototype making use of the latest technology by incorporating floppy disk storage using the newly released 8 inch floppy disks The disks worked differently from tape recorded music in that apiece of music could be reorchestrated without altering the data on the disk.In mid 1976, Furse ended up selling the prototype to the Canberra School of Music.

He continued to write software for the M8,making several trips to Canberra for this purpose, also incorporating software written by software expert Bruce Williams. It had also been around this time that Furse came into contact with synthesiser enthusiast Kim Ryrie (who in 1971 had created a magazine called Electronics Today International, ETI), and his business partner, electronics designer Peter Vogel.They had also been trying to design a synthesiser which could reproduce natural and acoustic sounds as well as musical instruments. To this end Ryrie and Vogel had formed a company in December 1975 which was named Fairlight Instruments after the Fairlight ferry that crossed the harbour in front of the basement workshop of Ryrie’s grandmother where they had been carrying out their early experimental work. Impressed with Furse’s digital synthesiser (to date they had only been able to develop an analogue synthesiser which didn’t produce the results they were after) they approached him with a deal for manufacturing the synthesisers and marketing the computer as a separate entity.

From 1976 Furse worked with Fairlight on the project, which included producing circuit boards from the circuit board schematics and reconfiguring the synthesiser’s keyboard resulting in the production of a totally redesigned version of the synthesiser which was known initially as the M8 CMI (Multimode 8 Computer Musical Instrument). In early 1979 Tony Furse, with less involvement in the project, signed a licence agreement with Fairlight, allowing them the use of his intellectual property for both the synthesiser and the computer.

The Fairlight CMI, which included a 73 note keyboard, two 8 inch floppy disk players, a monitor and light pen used four Motorola microprocessors and was able to perform 8 different sounds at once. Released onto the world market in 1979 the ‘Fairlight’ synthesiser, which was capable of playing any sound at all, was an instant hit with composers and recording artists, among them Stevie Wonder, Peter Gabriel, Paul McCartney, Jean Michel Jarre, Kraftwerk and Herbert von Karajan of the Berlin Philharmonic Orchestra. Thus Furse’s technology for the Qasar M8 formed the basis of what was to become known as the Fairlight CMI (ComputerMusical Instrument). In 1987 he was awarded the CSIRO’s Medal for Research Achievement for the invention of CMI technology.

Quoted from The Tony Furse Archive at the Powerhouse Museum Collection


Sources:

http://images.powerhousemuseum.com/images/pdfs/382297.pdf
