The ‘Orgue des Ondes’ Armand Givelet & Edouard Eloi Coupleux, France. 1929

Organist Charles Tournemire at the Orgue Des Ondes in the église de Villemomble 1931
Organist Charles Tournemire at the Orgue Des Ondes in the église de Villemomble 1931 (Image: 1931 / A. Boukelion)

In 1929 the radio engineer Armand Givelet began a long collaboration with the organ builder Edouard Eloi Coupleux with the ambition to build on his experience with the Clavier à Lampe to create a popular electronic organ for use in churches, cinemas and concert halls. The resulting instrument, the Orgue des Ondes or ‘Wave Organ’ was based on vacuum tube technology but implemented the RC oscillator design rather than the heterodyne principle of the the Theremin, Ondes-Martenot  and others. Uniquely for its time, the Orgue des Ondes had an oscillator for each key therefore the instrument was polyphonic, a distinct advantage over its rivals – despite the amount of room needed to house the huge machine.

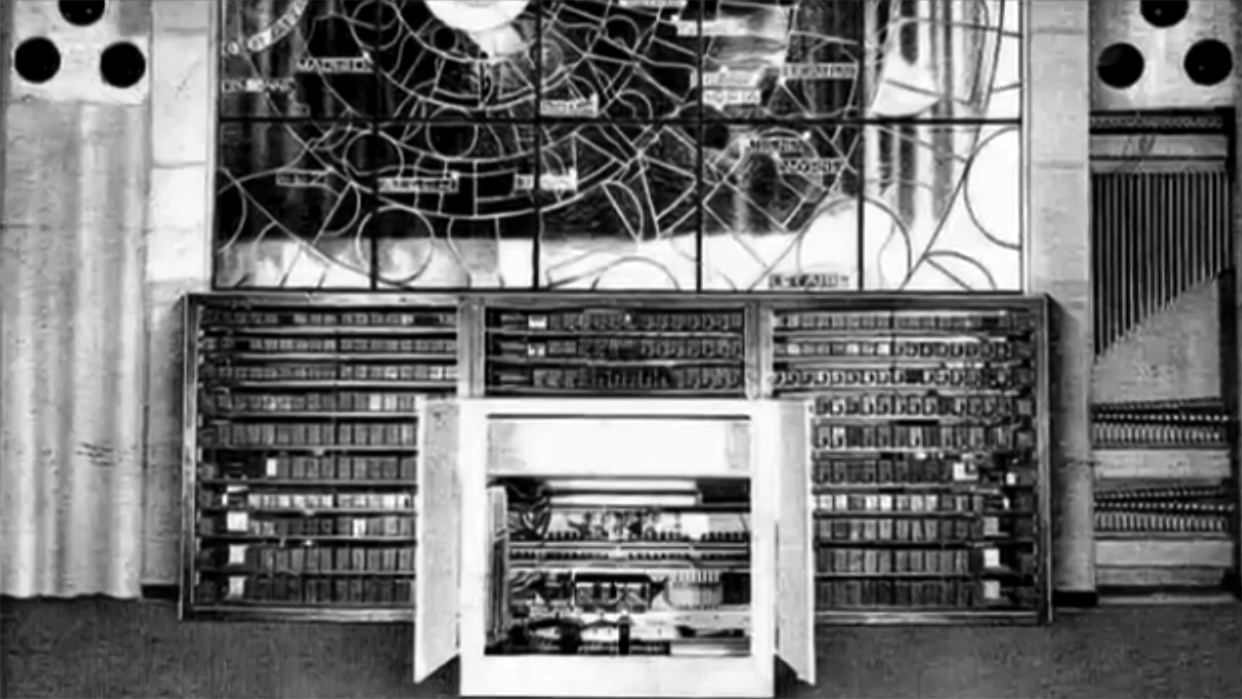

The Orgue Des Ondes installed at the Poste Parisien, Paris, France c 1928
The Orgue Des Ondes installed at the Poste Parisien radio station, Paris, France c 1928

The organ had over 700 vacuum oscillator tubes to give it a pitch range of 70 notes and ten different timbres – for each different timbre a different set of tubes was used. The Organ may have used as many as 1,000 tubes in total for oscillators and amplifiers. These tubes were housed in a separate rack ten feet long and six feet wide, out of sight of any audience.

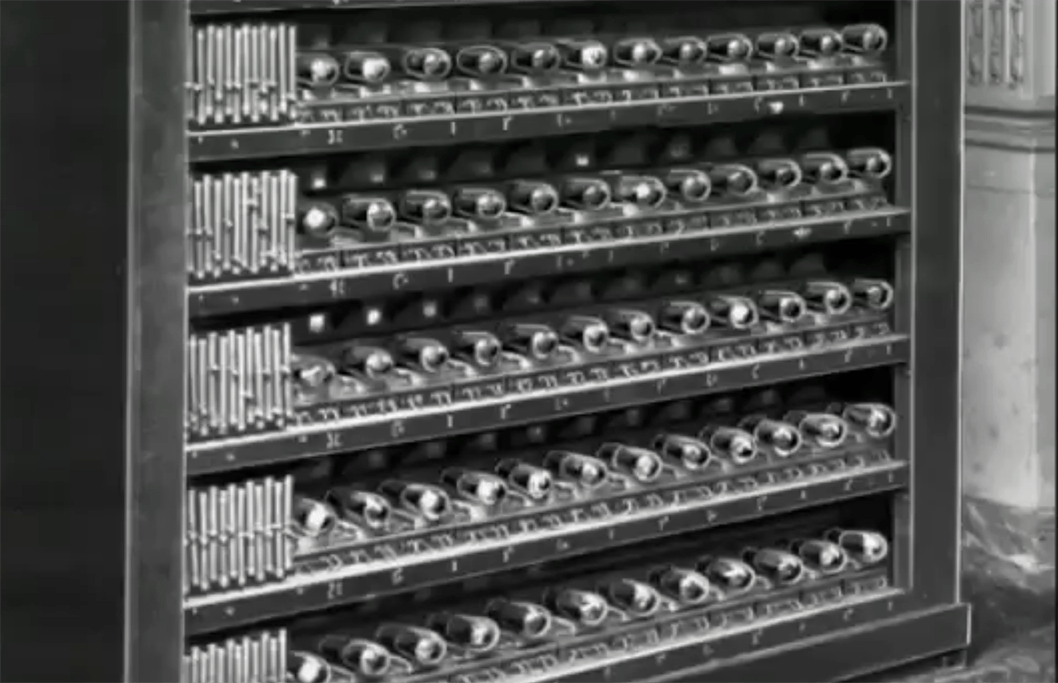

Multiple vacuum tubes of the Orgue Des Ondes
Multiple vacuum tubes of the Orgue Des Ondes

The sound of the organ was said to be particularly rich due to small variations in the tuning between each note creating a chorus like effect – in fact, the organ was capable of an early type of additive (addition of sine or simple waveforms) and subtractive (filtering complex waveforms) synthesis due to its number of oscillators and distortion of the sine waves produced by the LC oscillators.

Marshal Pétain reviews the inauguration of the Orgue Des Ondes at the Poste Parisien radio station. Image; 'Le Petit Parisien' 27 October 1932.
Marshal Pétain reviews the inauguration of the Orgue Des Ondes at the Poste Parisien radio station. Image; ‘Le Petit Parisien’ 27 October 1932.

Le Petit Parisien 27th October 1932

Le Post Parisien soon to inaugurate the “Wave Organ”

The organ which has been installed at the Post Parisien will be inaugurated in a few days, on 26 October. The organ, not a typical orchestral instrument used by numerous radio broadcasters, is the result of the latest perfections of technology. This organ, whose powerful voice will soon be broadcast on the waves, has little resemblance to the monumental organs of Notre Dame, Saint-Eustache and Saint-Etienne du Mont. One searches in vain for the forest of pipes which previously would show the instrument’s personality. Instead, two mahogany chests flank the organ, which, pierced with loudspeakers resembling portholes, replace the hundreds of slender colonnades of pipes, evoking the appearance of a harmonium.

This revolution however is not just decorative. The ‘Orgue Des Ondes’, which has just been installed in the large auditorium of the Post Parisien on the Champs Elysees, can be considered one of the most remarkable contributions of current science.

Eloy Coupleux, its inventor and manufacturer (with Armand Givelet) gave me a description of the instrument which, today can rival the the most venerable consecrated instruments. To establish his instrument, Mr. Coupleux started from the principle that every note was to be a transmitter, creating an oscillation at the same frequency of each note. Each of these positions corresponds to a key keyboards or pedal which when pressed trigger an oscillating circuit corresponding to an oscillating frequency of the note and the sound – thus creating all the vibrations of the musical scale. As for sounds, which in the classical organ, are dependent on the shape, length and mouth of the pipes, they are here created by and electrical circuit. The instrument, which has many advantages (over a classical organ. ed ), has three keyboards, pedals and seventy-six stops. The organ is insensible to temperature changes – unlike a classical organ – and is perfectly flexible, offering the possibility of indefinite virtuoso repetitions of high-speed lines. Similarly, the sound can, thanks to the amplified speakers, reach everywhere at the same time – and with radio transmissions of the movement of the keys, at a speed of 300,000 kilometers per second, an organist could play the organ of the Poste Parisien perfectly to the borders of Japan.

Rejuvenated by the miracle of the waves, the instrument will generate new interest in organs due to the vast increase in it’s abilities.
Maurice Bourdet.

1 Le Petit Parisien : journal quotidien du soir, 27 Octobre 1932,1.

The organ was controlled in the usual way with two manual keyboards, drawbars or stops and foot pedal controls for volume and expression. The instrument was said to accurately reproduce the sound of a large pipe organ as well as flutes, brass, and woodwind. The amplified sound from the organ was fed into a large array of thirty loudspeakers spaced around the performance room.2La Nature 1930, ‘Nouveaux instruments de musique Radio électriques, piano et orgue radioélectriques Givelet-Coupleux’, Cinquante huitième année, deuxième semestre – n. 2836-2847, 258-262.

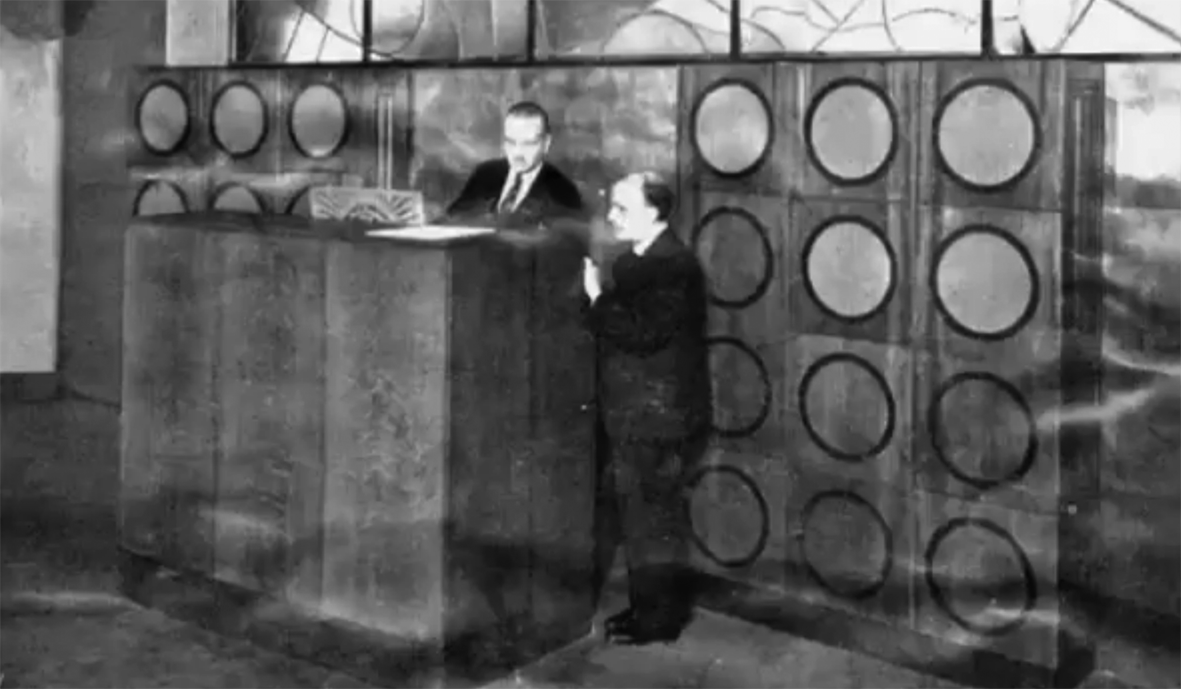

The Orgue Des Ondes installed at the Poste Parisien radio station, Paris, France c 1928
The Orgue Des Ondes installed at the Poste Parisien radio station, Paris, France, 1932

It is unclear how many of the instruments were built – sources put the number at four or perhaps eight, however, the first Orgues Des Ondes was installed at thr Église de Villemomble in the Parisian suburbs of Saint-Denis – inaugurated by the famous organist Charles Tournemire on the 6th December 1931. The second and more famous instrument was installed at the Poste Parisien radio station and auditorium on the Champs Elysees, Paris, inaugurated on 25th of October 1932.3Science et monde : tout pour tous : des idées, des faits.1932-11-17, 8. The high-profile inauguration event  was lead by the famous organist and composer Maurice Duruflé who’s repertoire of the evening included:

    • Mendelssohn: ‘6th Sonata’
    • Bach: ‘I cry to you Lord’
    • Buxtehude: ‘modal Fugue in C’
    • Vierne: ‘Allegrro perennial of the 1st Symphony ‘
    • Duruflé: ‘Sicilian’
    • Gigout: ‘Toccata ‘
    • Franck: ‘Pastorale’ Schumann ‘Canon in B Minor’

Duruflé thereafter performed every Sunday from August 1932 to January 1933. Both instruments seem to have later been removed and replaced with more modern organs.

The Orgue Des Ondes was met with praise from the scientific community and some musicians – including a young Olivier Messiaen – but also came under fierce criticism as being a frivolous invention or ‘fairground toy’ competing in the serious world of religious music (even the President of the Republic, Albert Lebrun joined in the critical affray). Part of the problem was that Coupleux and Givelet had created a futuristic instrument but placed it in a ‘traditional’ and conservative environment unwilling to countenance the replacement of the ‘sacred’ and timeless pipe organ with a synthetic newcomer. For example, it was only in the 1960s that The Second Vatican Council of the Roman Catholic Church admitted the use of electronic organs in sacred music but emphasised the preeminence of the pipe organ;

“with the knowledge and consent of the competent territorial authority, provided that the instruments are suitable for sacred use.”4 Bush, Douglas and Kassel, Richard, The Organ, An Encyclopedia, Taylor & Francis, 2004, 165.

Despite its initial warm reception, the Orgue Des Ondes eventually succumbed to the practicality and portability of the American built Hammond Organ which also targeted the religious market as well as domestic music making. This competition bankrupted the Givelet-Coupleux partnership in 1935.

Images of the Orgue Des Ondes and othe Coupleux-Givelet instruments.

The Coupleux brothers, Paul, Leon and Eloi
The Coupleux brothers, Paul, Leon and Eloi

Eloi Coupleux Biographical notes

The Coupleux piano manufacturing business was founded in 1865 originally as a modest watchmaking workshop based in Rue Carnot, Tourcoing, Lille, France by Pierre Coupleux . On Pierre’s death in 1904 the Coupleux sons – Eloi, Paul and Leon took over the business and, extending their knowledge of watchmaking, they began to manufacture music boxes, phonographs, devices for optical illusions, fairground equipment and early cinema equipment. The Coupleux’s soon began selling Pianos and other stringed instruments fired by the new middle class demand for the instrument. The Coupleux fuelled this fire by giving promotional concerts around France and Europe, recording their own records and eventually launching their own radio station ‘Radio Flanders’ in 1923 – five years before the existence of French national state radio.

Coupleux brothers working at their fathers watchmaking shop c1900
Coupleux brothers working at their fathers watchmaking shop c1900

In 1908, having secured the French monopoly of imported American Pianolas, Paul Coupleux, by then an established piano dealer and tuner, opened a second shop in one of Lille’s most affluent shopping street 24 bis, rue Esquermoise, Lille selling their own manufactured pianos.

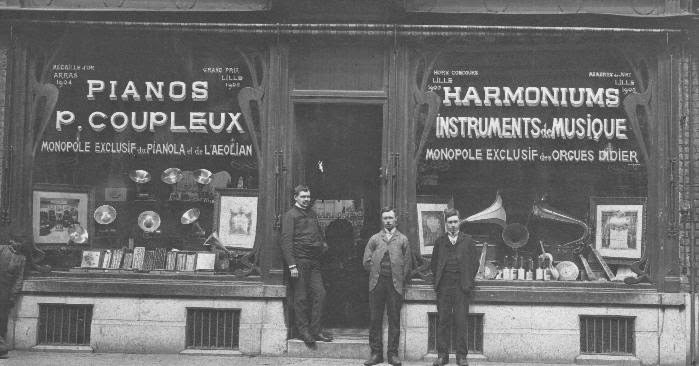

The Coupleux shop at 24 bis, rue Esquermoise, Lille France c 1920
The Coupleux shop at 24 bis, Rue Esquermoise, Lille France c 1920

During the First World War Lille was occupied by the Germans and much of the Coupleux brothers shop and warehouse was destroyed. However in 1919 they realised that there was a new demand for church organs; most of the churches of Northern France and Belgium had been destroyed or damaged and soon their order books were full due to the demand for Coupleux pipe Organs. By 1923 the business was thriving with 150 staff and a production of 150 pianos per month.

The Coupleux company continued to thrive until 1935 when the simultaneous and combined forces of the commercial failure of their electronic musical instrument and the economic crisis of the 1930s closed the business. The rue Esquermoise shop continued as a music store until 1997 long after the closure of the instrument manufacturing business.

Workers at the Coupleux frères piano and organ workshop at 100 rue du Moulin-Fagot, Tourcoing, Lillle, France c1920
Workers at the Coupleux frères piano and organ workshop at 100 rue du Moulin-Fagot, Tourcoing, Lillle, France c1920

Eloi Coupleux was a self taught engineer, he had left school at fifteen and began working in his father’s watchmaking shop where he soon discovered his mechanical talent. His inventions included a dual disk phonograph for stereo audio, the Télépiano (1922) – a device for transmitting piano vibration magnetically down a telephone wire and numerous audio reproduction machines. And it was this obsession with new technology that lead him to meet the physicist and engineer Armand Givelet in 1927.

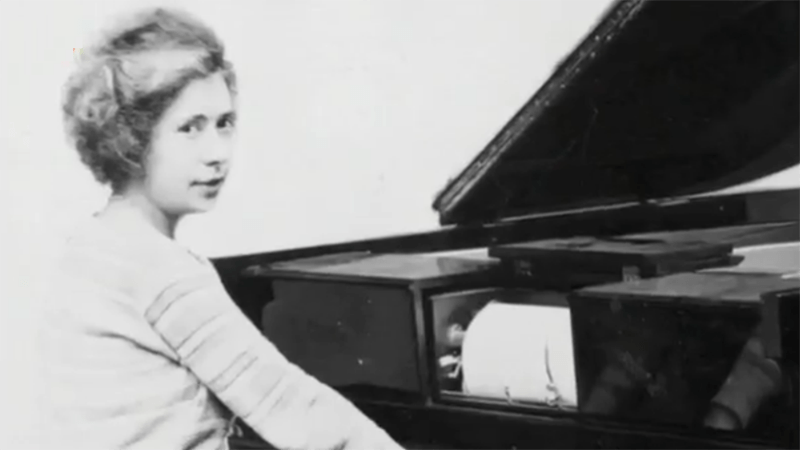

Louise Coupleux (sister of Eloi) playing an amplified Télépiano in c1922
Louise Coupleux (sister of Eloi) playing an amplified Télépiano in c1922

This meeting was the beginning of a long collaboration between the duo designing new electronic musical instruments. Their first device was a larger, polyphonic version of Givelet’s ‘Clavier à lampe designed for use as a large church organ. The resulting instrument the Orgue Des Ondes was premiered at the 1929 exhibition in Paris and was one of the first electronic organs. Despite international publicity only four of the huge instruments were sold – all to churches in Northern France. 5 Carpentier, Oliver. L’Aventure industrielle des frères Coupleux, 1900-1935, Préface de Douglas Heffer, éditions de l’Inoui, 2004.

Sheet music book and the Orgue Des Ondes
Sheet music book and the Orgue Des Ondes


References

  • 1
    Le Petit Parisien : journal quotidien du soir, 27 Octobre 1932,1.
  • 2
    La Nature 1930, ‘Nouveaux instruments de musique Radio électriques, piano et orgue radioélectriques Givelet-Coupleux’, Cinquante huitième année, deuxième semestre – n. 2836-2847, 258-262.
  • 3
    Science et monde : tout pour tous : des idées, des faits.1932-11-17, 8.
  • 4
    Bush, Douglas and Kassel, Richard, The Organ, An Encyclopedia, Taylor & Francis, 2004, 165.
  • 5
    Carpentier, Oliver. L’Aventure industrielle des frères Coupleux, 1900-1935, Préface de Douglas Heffer, éditions de l’Inoui, 2004.



the ‘Clavier à Lampe’ (1927), ‘Automatic Electrical Musical Instrument’ (1929) and ‘Orgue Radioélectrique’. Joseph Armand Marie Givelet, France. 1927.

Armand Givelet behind the early monophonic Clavier a Lampe: “Les premiers essais de musique radio-électrique avec clavier ont été faits par Givelet qui construisit, avec des moyens plus que rudimentaires, un appareil fonctionnant parfaitement.” Image from: Phonographes et Musique Mécanique, Eugène-H. WEISS. Bibliothèque des Merveilles, Librairie Hachette. 1930.(édition de juin 1930), 16.

Armand Givelet was one of several post ww1 military radio operators who coincidentally discovered the musical possibilities of body capacitance to control the radio howl generated by vacuum tube radio feedback – in essence using the body as a variable capacitor to change the pitch of an audio oscillator. Alongside Maurice Martenot (The Ondes Martenot), Leon Termen (The Theremin) and others, Givelet exploited the feedback howl effect to generate a controllable sine pitch for an electronic instrument. Givelet’s instrument christened the Clavier à Lampe. This instrument was a simple a battery powered, monophonic, single oscillator device controlled by a two octave keyboard which Givelet designed to circumnavigate the poor audio fidelity of 1920s microphone technology by directly connecting the output of the instrument into a radio transmitter – the ‘direct injection’ method. The Clavier à Lampe premiered at the Trocadero Theatre, Paris in 1927  1 Hischak claims, probably in error, that Givelet took the Piano Radio Èlectrique on a promotional tour to the United States starting with a performance at the Trocadero Theatre in Philadelphia on June 9th 1927: Hischak. Thomas, S.  A Day-by-Day Chronicle of the Jazz Age’s Greatest Year, Rowman & Littlefield Publishers, 127.. The first broadcast using Givelet’s direct injection method was made on the 27th March 1928 at the “Société des Ingénieurs Civils, Paris.

Givelet’s ultimate ambition, however, was to create a multi-tube polyphonic organ for use in radio broadcasts and liturgical music. To achieve this, Givelet began a lengthy collaboration with Eloi Coupleux of Coupleux Frerès – organ manufacturer and distributor based in Tourcing near Lille. The first fruit of this collaboration was the prototype Automatic radio-electric piano – essentially a five note polyphonic version of the Clavier à Lampe combined with a pianola style punch-paper controller (Coupleux Frerès had the monopoly for the distribution of Aeolian player-pianos in France). The coupleux-Givelet Automatic radio-electric piano was successfully demonstrated to an enthusiastic audience at the Congrès de la Radiodiffusion at the Salle Pleyel  (252 Rue du Faubourg Saint-Honoré, 75008 Paris) on 16 November 1929:

The 1929 version of the ‘Automatic Radio Electric Piano’:  Eloi Coupleaux on the Left and Armand Givelet on the right. Image from: Phonographes et Musique Mécanique, Eugène-H. WEISS. Bibliothèque des Merveilles, Librairie Hachette. 1930. (édition de juin 1930), 14.

“After the remarkable speeches of M M. Mantoux and Ricard, organizers of the Congress were vigorously applauded by more than two thousand spectators, MM. Eloi Coupleux and A. Givelet, presented a musical wave (‘ondes musicales’) device of their own invention which automatically produces orchestral polyphony thanks to the unwinding of a perforated roller. […]

Eloi Coupleux and A. Givelet have succeeded in producing simultaneous notes thanks to several oscillating circuits operating at the same time with the help of a piano keyboard. From there to associating the automatic control of a piano, there was only one step: the strip (or the perforated cardboard) acts on a pan flute and controls the operation of the keys with more precision and accuracy using its electrical contacts instead of the ‘sledgehammers’ (of an organ or piano).

The extremely ingenious combinations of the device make it possible to obtain tremolo and other variable characteristics of the oscillating circuit of the corresponding note. Timbral variations are also created by the actions of filters, or superimposed oscillations. We also have at will a hard or soft, progressive attack of the note.

The re-creation of a piano or a radio organ obviously requires a large number of oscillating circuits and lamps but this number is considerably reduced by bringing in frequency doublers, for example, which make it possible to immediately obtain the notes of the upper scale.”2Lallemant, Paul, ‘En Marge De La Profession’ , Le Moniteur des architectes : organe… de la Société nationale des architectes de France, Paris, 01/04/1933, 66-70.

A third prototype from the Givelet-Coupleux collaboration was a was a fully polyphonic organ with 2 manuals and pedals known as the Orgue radio-électrique which was shown at the Académie des Sciences, Paris on October 6th, 1930. This instrument was developed into what became the final instrument from the Givelet–Coupleux team, a huge multi-oscillator polyphonic organ christened the Orgue des Ondes.

Armand Givelet Biographical notes

Armand Givelet (born: 21 07 1889 Reims France – died: 09 11 1963 La Varenne St-Hilaire, St-Maur-des-Fossés) was originally  an engineer in the French military during the First World War but  soon recognised the potential of Lee De Forest’s triode technology. He founded and became president of the Radio-Club de France (1921) and the T.S.F. (‘Transmission sans fil’ or Wireless) engineering school. Givelet became a recognised authority on radio technology and an inventor who held many patents for radio and broadcast equipment as well as his work with electromechanical (tone-wheel) and valve based electronic musical instruments; His particular contribution was a stabilised audio oscillator that used much less power than previous triode circuitry.

Givelet’s first complete instrument was the The monophonic Piano Radio-électrique unveiled in 1927. In early 1929 Givelet began a lengthy collaboration with the organ Builder Eloi Coupleux and the Coupleux-frères company  that produced some of the earliest polyphonic electronic organs – designed primarily for the church and religious music market. The largest of the Coupleux-Givelet instruments was the Orgue des Ondes built initially for Le Poste Parisien – a huge instrument which comprised of 200 oscillator tubes producing 70 different timbres or stops. Despite their unique features, The Coupleux-Givelet organs were rapidly made obsolete by much smaller and cheaper organs such as the Hammond Organ. Only four Orgue des Ondes were sold by Coupleux-frères to churches in France.

Givelet also wrote radio plays under the pseudonym Charles de Puymordant.3 Poincignon, Jean-Gabriel , La Renaissance du Radio Club de France, Le Haut-Parleur, N° 820, Juillet 1948, 359. and published a number of books on physics and music.

An article in Parole Libre (29-10-1927) describes the character and appearance of Armand Givelet:

“Mr. Armand Givelet has produced a number of inventions, including some outside the the wireless industry.  As early as 1917 he built a spark-gap transmitter without valves and the first commercial amplifier in 1918 . The silhouette of M. Givelet is amusing: very long, dry, a little bent. Author of magazines on the T.S.F., he always appears smiling. Very short-sighted, with wrinkled eyelids, he is constantly browsing. Very dark, he has a thick goatee, short mustache, high hair. He is gesticulating, active, endearing. Vice President short mustache, high hair. It is wide, overflowing, a little diffuse. At 38, he not only has a magnificent past, but the whole future of the most knowledgeable, most disinterested and most deserving scientist, despite being… French!”

Caricature of Armand Givelet: Armand Givelet Inventeur. La Parole libre : supplément du Journal parlé…. 10-29-1927, 2.

Sources

Carpentier, Olivier .’L’ Aventure industrielle des frères Coupleux, 1900-1935′ Préface de Douglas Heffer, éditions de l’ Inoui, 2004.

La Vie et les ondes : l’oeuvre de Georges Lakhovsky / Michel Adam et Armand Givelet, 1936.

Givelet, A. ‘L’Orgue Electronique Système Coupleux-Givelet de l’église de Villemomble, près Paris, Le Genie Civil: revue générale des industries françaises et étrangères, 1932-03-05. 244-246.

‘Instrument de Musique synthétique (Piano Radioélectrique), Le Genie Civil: revue générale des industries françaises et étrangères, 18/02/1928. 175.

Le Monde, 1989-07-21, 23.

References:

  • 1
    Hischak claims, probably in error, that Givelet took the Piano Radio Èlectrique on a promotional tour to the United States starting with a performance at the Trocadero Theatre in Philadelphia on June 9th 1927: Hischak. Thomas, S.  A Day-by-Day Chronicle of the Jazz Age’s Greatest Year, Rowman & Littlefield Publishers, 127.
  • 2
    Lallemant, Paul, ‘En Marge De La Profession’ , Le Moniteur des architectes : organe… de la Société nationale des architectes de France, Paris, 01/04/1933, 66-70.
  • 3
    Poincignon, Jean-Gabriel , La Renaissance du Radio Club de France, Le Haut-Parleur, N° 820, Juillet 1948, 359.
